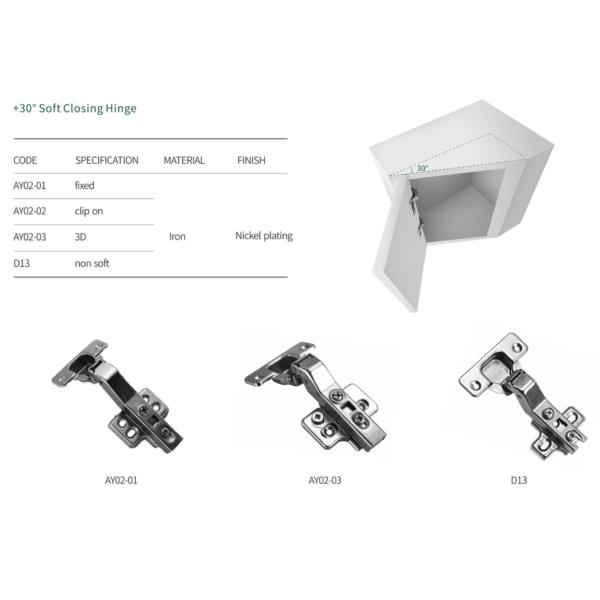

AY02 Multifunctional Soft Closing Nickel Plating Cabinet Door Hinge
| Type | +30° Soft Closing Hinge |
| Model Number | AY02/D13 |
| Material | Iron |
| Finish | Nickel Plating |
| Specification | Soft close/Clip on/3D
Non Soft Close/Slide on |
AY02 Multifunctional Soft Closing Nickel Plating Cabinet Door Hinge
One Hinge. Infinite Applications.
Engineered for maximum versatility and performance, the AY02 Multifunctional Cabinet Hinge is the smart choice for modern cabinetry and furniture manufacturing. Whether you're building kitchen cabinets, wardrobes, bathroom vanities, or office storage units, the AY02 delivers smooth operation, elegant finish, and tool-free installation -- all in one reliable component.
Featuring a precision hydraulic damper, the AY02 ensures soft, silent, automatic door closure -- eliminating slamming, reducing noise, and extending the life of your cabinetry. This makes it ideal for residential, hospitality, and commercial environments where quiet, safe, and durable performance is essential.
The satin nickel plating offers a bright, clean, and corrosion-resistant finish that resists fingerprints, humidity, and daily wear -- perfect for high-moisture areas like kitchens and bathrooms. Tested for 72 hours in salt spray, the plating ensures long-term aesthetic and functional integrity.
With a clip-on installation system, the hinge body snaps securely into the mounting plate -- enabling tool-free assembly and easy maintenance. This significantly reduces labor time and production costs, making the AY02 a cost-effective solution for mass production.
The full 3D (triaxial) adjustability allows fine-tuning in vertical, lateral, and depth directions (±2.5mm / ±2.0mm / ±1.5mm), ensuring perfect door alignment even after installation -- a must for high-end cabinetry and precision-fit furniture.
Constructed from high-grade zinc alloy (ZL01/Zamak3) and reinforced with stainless steel shafts and nylon bushings, the AY02 is tested for over 50,000 open/close cycles, guaranteeing long-term durability and smooth operation under daily use.
Compatible with standard 35mm cup drilling (11mm depth) and NISKO-style mounting plates, the AY02 integrates seamlessly into European frameless cabinet systems, making it a direct replacement or upgrade for common hinges.
Available in full overlay, half overlay, and inset configurations (with matching mounting plates), the AY02 is truly multifunctional -- suitable for a wide range of door types and cabinet designs.
⭐ Key Features & Specifications:
| Feature | Specification |
| Model | AY02 Multifunctional Hinge |
| Opening Angle | 95°-110° (Standard/Full Open) - Adjustable for various setups |
| Closing Mechanism | Hydraulic soft close - Silent, automatic damping |
| Installation Type | Clip-on (hinge body snaps into mounting plate) |
| Adjustability | 3D Adjustable: ±2.5mm (vertical), ±2.0mm (lateral), ±1.5mm (depth) |
| Cup Diameter | 35mm standard (fits 16-18mm door panels) |
| Mounting Plate | Included - Compatible with NISKO/European standards |
| Material | Zinc Alloy (ZL01) body + Stainless Steel shaft + Nylon bushings |
| Finish | Satin Nickel Plating (Ni-Cu-Ni, 72hr salt spray tested) |
| Load Capacity | Supports doors up to 20kg (per pair) |
| Cycle Life | 50,000+ open/close cycles (EN 15570 compliant) |
| Compatibility | Frameless cabinets, kitchen, wardrobe, bathroom, office furniture |
| Packaging | 1 pc, 2 pcs (pair), or bulk (50/100 pcs per box) |
